Compatible with IS-II active, IS-III active, IT-III active

Surgical drills and fixture drivers for fixture implantation are included.

Applicable fixture types: IS-III active / IS-III active / IT-III active

Applicable fixture types: IS-IIactive / IS-IIIactive / IS-IIIactive S-Narrow / IT-IIIactive

For fixtures with Ø5.5 and more, S-Wide kit is required

Implantation Interval Inspection

Surgical drills and fixture drivers for fixture implantation are included.

In multiple cases, intervals and directions between implants are measured with MD Parallel Pin. The distance may be measured within range from Ø4.0 to Ø9.0, with mesiodistal size of crown determined. With mesiodistal size of crown determined, Guide Point Drill with MD Spacer installed is used for drilling. The MD Parallel Pin is installed to measure intervals between implants.

Special Cutting Edge

Dual stage Design on Cutting Edge

In multiple cases, intervals and directions between implants are measured with MD Parallel Pin. The distance may be measured within range from Ø4.0 to Ø9.0, with mesiodistal size of crown determined. With mesiodistal size of crown determined, Guide Point Drill with MD Spacer installed is used for drilling. The MD Parallel Pin is installed to measure intervals between implants.

Ø2.2 / Ø3.0 / Ø3.5 : 2 stage

Ø4.0 / Ø4.5 / Ø5.0 : 3 stage

Dual stage type drill to avoid bouncing while drilling

Safe and Easy to take out a drill from a kit

Dual stage Design on Cutting Edge

All drills are arranged by its length. It enable a user to access them without pinching or bending hands when taking out or putting back.

Ø2.2 / Ø3.0 / Ø3.5 : 2 stage

Ø4.0 / Ø4.5 / Ø5.0 : 3 stage

Dual stage type drill to avoid bouncing while drilling

1.Point Drill

Length(mm) / Product name
Diameter
Product name
Ø1.35
PD13

2.Lindemann Drill

Length(mm) / Product name
Diameter
Product name
Ø1.35
LDS23CS

3.Surgical Drill(Ø2.2)

Length(mm) / Product name
Diameter
Product name
7.3
TSD2207F3
8.5
TSD2208F3
10.0
TSD2210F3
11.5
TSD2211F3
13.0
TSD2213F3

4.Surgical Drill(Ø3.0)

Length(mm) / Product name
Diameter Ø2.2(mm)
Product name
7.3
TSD3007F3
8.5
TSD3008F3
10.0
TSD3010F3
11.5
TSD3011F3
13.0
TSD3013F3

5.Surgical Drill(Ø3.5)

Length(mm) / Product name
Diameter Ø2.2(mm)
Product name
7.3
TSD3007F3
8.5
TSD3008F3
10.0
TSD3010F3
11.5
TSD3011F3
13.0
TSD3013F3

6.Surgical Drill(Ø4.0)

Length(mm) / Product name
Diameter Ø2.2(mm)
Product name
7.3
TSD3007F3
8.5
TSD3008F3
10.0
TSD3010F3
11.5
TSD3011F3
13.0
TSD3013F3

7.Surgical Drill(Ø4.5)

Length(mm) / Product name
Diameter Ø2.2(mm)
Product name
7.3
TSD3007F3
8.5
TSD3008F3
10.0
TSD3010F3
11.5
TSD3011F3
13.0
TSD3013F3

8.Surgical Drill(Ø5.0)

Length(mm) / Product name
Diameter Ø2.2(mm)
Product name
7.3
TSD3007F3
8.5
TSD3008F3
10.0
TSD3010F3
11.5
TSD3011F3
13.0
TSD3013F3

9.Cortical Tap (IS-II active)

Length(mm) / Product name
Diameter
Product name
Ø3.5
CT38S08
Ø4.0
CT43S08
Ø4.5
CT45S08
Ø5.0
CT50S08
Ø5.5
CT55S08

10.Cortical Tap (IS-III active)

Length(mm) / Product name
Diameter
Product name
Ø3.5
CT38S09
Ø4.0
CT43S09
Ø4.5
CT45S09
Ø5.0
CT50S09
Ø5.5
CT55S09

11.Cortical Long Tap

Length(mm) / Product name
Diameter
Product name
IS-III, IT-III
IS-II. EB-II
Ø3.5
ISTD38L
PTAP35FL
Ø4.0
ISTD40L
PTAP40FL
Ø4.5
ISTD45L
PTAP45FL
Ø5.0
ISTD50L
PTAP50FL
Ø5.5
ISTD55L
PTAP55FL

12.Connector

Length(mm) / Product name
Length
Product name
Long
RC15

13.IS Fixture Driver

Length(mm) / Product name
Type
Product name
Ratchet (Short)
ISFD10R
Ratchet (Long)
ISFD15R
Contra Angle (Short)
ISFD05C
Contra Angle (Long)
ISFD05CL

14.IT Fixture Driver

Length(mm) / Product name
Type
Product name
Ratchet (Short)
ITFDO31RS
Ratchet (Long)
ITFDO31RL
Contra Angle (Short)
ITFDO31S
Contra Angle (Long)
ITFDO31L

15.MD Spacer

Length(mm) / Product name
Diameter
Product name
Ø4.0
MDS4025
Ø7.0
MDS7030
Ø8.0
MDS8030

16.MD Parallel Pin

Length(mm) / Product name
Diameter
Product name
Ø4.0 / Ø5.0
MDPP4050
Ø6.0 / Ø7.0
MDPP6070
Ø8.0 / Ø9.0
MDPP8090

17.Direction Pin

Length(mm) / Product name
Diameter
Product name
Ø3.5
DPIS35C
Ø4.5
DPIS45C

18.Drill Extension

Length(mm) / Product name
Product name
DE01

19.Hex Driver

Length(mm) / Product name
Length(mm)

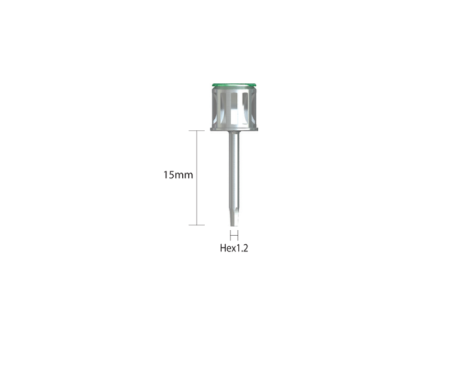

Hex
Product name
15
1.2
HD1215S

20.Torque Ratchet

Length(mm) / Product name
Product name
TW60

21.Driver Holder & Depth Gauge

Length(mm) / Product name
Product name
DH01

IS-III active(IT-III active) Fixture Ø4.0 X 10mm (D1/D2 bone)
