BioSeal (0.5mm)

Increase sealing of soft tissue and minimize bone loss

S.L.A. Surface

S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50㎛, and dual acid-etching

Apex

Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading

Coronal Macro Thread(Thread pitch 0.8mm)

Excellent primary stability at cortical bone

Magic Thread

Specially designed to endure vertical and lateral force

OPTIMAL S.L.A SURFACE

Fast Osseointegration

The S.L.A. surface of IS-II active has a combination of macropores and micropores formed by HA (Hydroxy Apatite) sandblasting with a particle size less than 50μm and acid etching.This is used as a form of coating to increase the biocompatibility of the implants.

The more the surface area, the more direct bone-to implant contact that stimulates osteoblasts and boosts blood flow leading to a faster and effective osseointegration. Furthermore,it has no impurities on the implant surface. No residual acid or cytotoxicity was observed in the surface examination.

MAGIC THREAD

Strong primary stability

Magic Thread with the inverted triangular shape and  powerful deep thread help to achieve strong and stable initial fixation. In addition, this special design allows to endure vertical and lateral forces effectively.

POWERFUL APEX

Strong primary stability

Apex is powerful in drilling. Due to this self-compactable and tapered apex design, Initial fixation is easily achieved. It works great in both immediate placement and immediate loading.

CORONAL MACRO THREAD

Coronal macro thread helps to achieve excellent primary stability at the cortical bone and initial fixation. The apex is excellent. Therefore, IS-II active works great in both immediate placement and immediate loading.

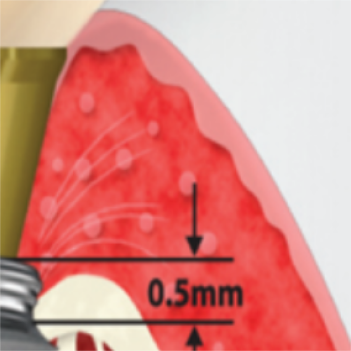

BIOSEAL

Minimizing Bone Loss

The BioSeal design of IS-II active implant is Neobiotech’s unique design to maintain marginal bone. BioSeal has a curved S shape with the application of 0.5mm micro grooves on the machined surface. This design is invented to minimize the bone loss by maximizing soft tissue sealing

Narrow / Diameter Ø3.5

Length(mm) / Product name
BIS3508A
8.5mm
BIS3510A
10.0mm
BIS3511A
11.5mm
BIS3513A
13.0mm

Regular / Diameter Ø4.0

Length(mm) / Product name
BIS4507A
7.3mm
BIS4508A
8.5mm
BIS4510A
10.0mm
BIS4511A
11.5mm
BIS4513A
11.5mm

Regular / Diameter Ø4.5

Length(mm) / Product name
BIS4507A
7.3mm
BIS4508A
8.5mm
BIS4510A
10.0mm
BIS4511A
11.5mm
BIS4513A
13mm

Wide / Diameter Ø5.0

Length(mm) / Product name
BIS5005A
7.3mm
BIS5006A
8.5mm
BIS5007A
10.0mm
BIS5008A
11.5mm
BIS5010A
13mm
BIS5011A
13mm
BIS5013A
13mm

S-Wide / Diameter Ø5.5

Length(mm) / Product name
BIS5005A
7.3mm
BIS5006A
8.5mm
BIS5007A
10.0mm
BIS5008A
11.5mm
BIS5010A
13mm
BIS5011A
13mm
BIS5013A
13mm

S-Wide / Diameter Ø6.0

Length(mm) / Product name
IS35007AP
7.3mm
IS35008AP
8.5mm
IS35010AP
10.0mm
IS35011AP
11.5mm
IS35013AP
13mm

S-Wide / Diameter Ø7.0

Length(mm) / Product name
IS35006AP
6.6mm
IS35007AP
7.3mm
IS35008AP
8.5mm
IS35010AP
10.0mm
IS35011AP
11.5mm
IS35013AP
13mm

Cover Screw

Length(mm) / Product name

Narrow

ISN30
ISN30M
ISN30L

Regular / Wide / S-Wide

ISC40S
ISC40M
ISC40L
